Ideal solution for soil stabilisation, sub-base reinforcement
Engineering & Geosynthetics Fabric
Biaxial Geogrids

This range is manufactured out of Polypropylene by a unique punching and drawing process. It provides an ideal solution for soil stabilisation, sub-base reinforcement, foundation engineering and other highway challenges.

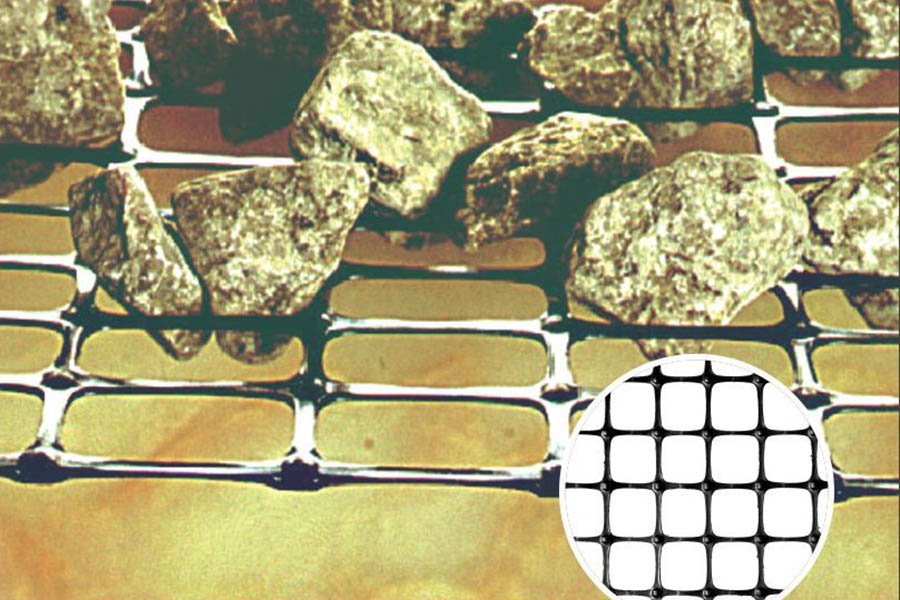

When compact granular material partially penetrates over Biaxial Geogrid and projects through the apertures, it results into an interlocking action between the particles and the grid. This interlocking enables the grid to resist horizontal shear from the fill and mobilise maximum bearing capacity of a soft sub soil.

Biaxial Geogrid is engineered to be mechanically and chemically stable in aggressive soil environment and is not susceptible to hydrolysis, environment stress cracking and micro-organism attack.

Biaxial Geogrid features high tensile stiffness at low strains, and has excellent resistance to construction damage and environmental exposure. A significant saving in the fill thickness can be achieved by using the Biaxial Geogrid range of products along with the improvement of resistance towards rutting.


  • Road Construction, Heavy Duty Pavements
    • They’re excellent for construction of access roads and haul roads in mines where large thickness of aggregate is lost in soft sub-grades due to rutting
    • For heavy-duty pavement such as container yards, port areas, airports and large axle loads; one or more layer of Biaxial Geogrid can be used to minimise the differential settlements.
  • Railway Track Bed Stabilization
    • Railway track that overlies soft sub-grade, always experiences rapid and permanent settlement; leading to disturbances of formation levels.
    • When a railway track ballast is reinforced with Biaxial Geogrid, it achieves higher stiffness levels and the formation level is undisturbed.
    • Strong and positive interlocking action with the ballast prevents lateral movement, thus minimising migration of fines from sub-grade.
    • Drastically improves rail safety at higher speeds over weak and wet soil conditions.
  • Other Applications:
    • - Base reinforcement/soil stabilization
    • - Foundation engineering
    • - Track bed stabilization
    • - Reinforced soil wall
    • - Bridge abutment
    • - Slope and landscape repair
    • - Roadway embankment
    • - Asphalt reinforcement
    • - Foundation of oil storage tanks
    • - Erosion control
    • - Mining operation
    • - Environment and waste management system

Product Range

  • 100% Polypropylene with Optimum apertures to have better interlocking with Aggregates having higher Junction Strength and Flexural rigidity to minimise differential settlement effectively
  • Biaxial Geogrid is available in the range of 20 Kn/m to 40 Kn/m, which prevents differential settlement effectively.
